Vehicle Overview

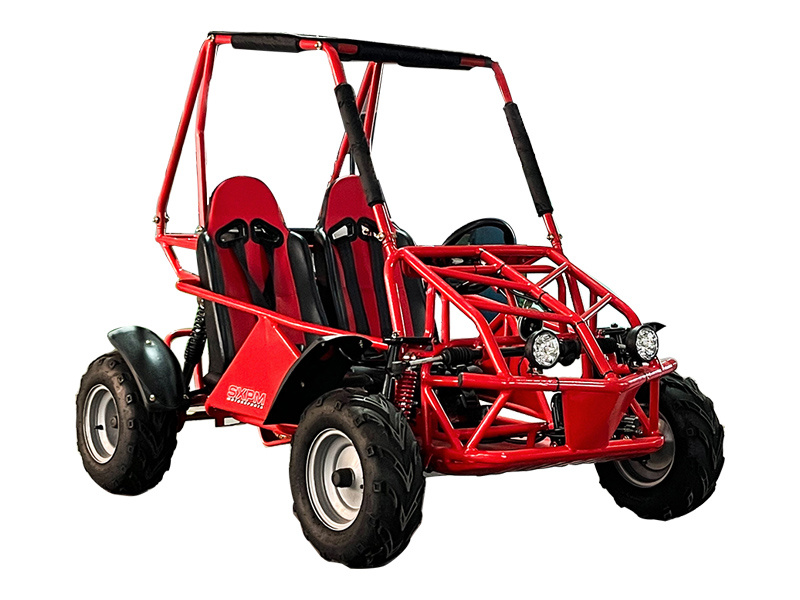

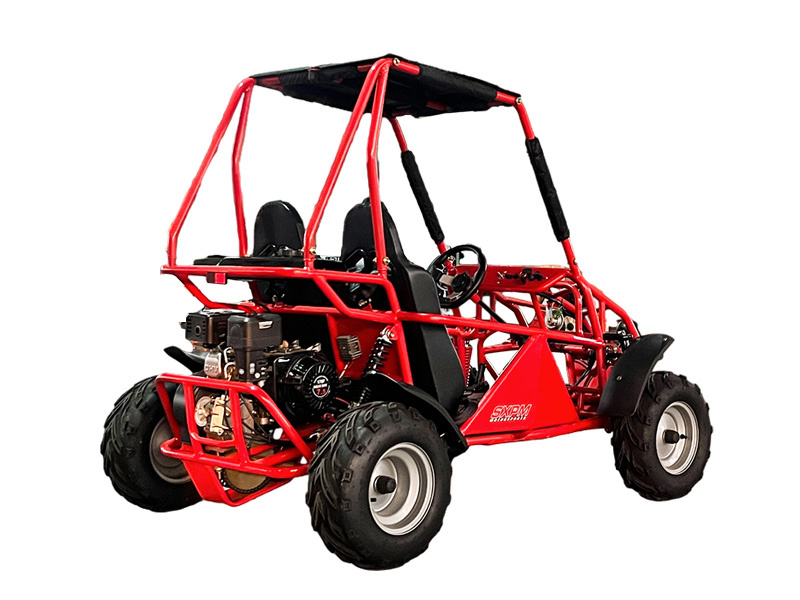

200cc Universal locomotive
selling price
Weight
kg
Stock surplus
隐藏域元素占位
- Details
- Homologation
- Motor
- Vehicle Chassis
- Configuration Status
-
- Commodity name: 200cc Universal locomotive
Excellent off-road performance, transmitting the ultimate thrill
Performance Characteristics
Improved handling and full driving pleasure
With a minimum turning diameter of 6.5m, the maneuvering performance is greatly improved and the steering is more flexible; at the same time, the steering effort is reduced by 25%, which makes the maneuvering easier and allows you to pass through narrow areas with ease. With the extraordinary driving control, you can find passion and challenge with abandon, and have fun to the fullest.
Excellent off-road performance, transmitting the ultimate thrill
Steep slopes can be easily overcome; the newly adjusted shock absorbers provide better comfort; it is easy to run over thousands of miles, easily crush all kinds of complicated terrain, and release a sound pleasure between accelerating and tailgating.
Gallery
-
Front wheel distance 930mm Rear wheel distance 850mm Shaft 1230mm Vehicle dimensions 1800x1160x1350mm Packing size 2039x1320x790mm Net 155kg -
CVT Engine 168cc,4 stroke,Forced air-cooled Cylinder diameter x stroke 67.82x53.34mm Compression ratio 8:01 Maximum Power and Calibration Speed 4.7Kw/3600RPM Maximum Torque and Corresponding Speed 13.1N.m/2500RPM Fuel supply mode Carburetor Ignition method C.D.I Startup mode Electric start/Hand pull start Gear Single forward gear+reverse gear Transmission system Auto CVT clutch Drive mode Rear two wheel drive Steering system Gear rack steering -
Brake system Front and rear wheel disc brake Front wheels 16×6-8 Rear wheels 16×7-8 Tank capacity 4L Top speed 40km/h Minimum clearance from ground 70mm -
Standard configuration Three point seat belts
Plastic material hard roof
Hydraulic disc brake
Sports seats
Four wheel mudguards and bracketsOptional accessories Windscreen Use of population Children aged 8-16 Color red/green
