Vehicle Overview

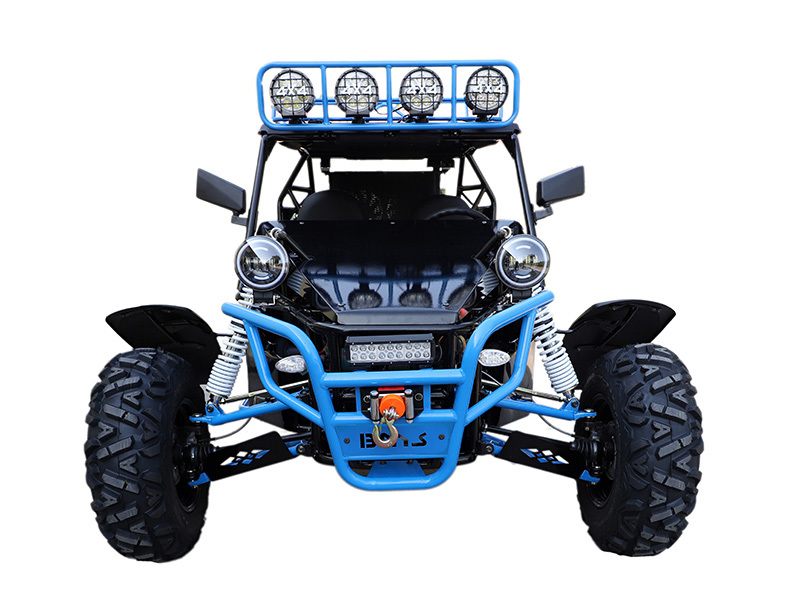

CVT1000cc-4S
selling price
Weight
kg
Stock surplus
隐藏域元素占位
- Details
- Homologation
- Motor
- Vehicle Chassis
- Configuration Status
-
- Commodity name: CVT1000cc-4S
Improved handling and full driving pleasure
Performance Characteristics
Improved handling and full driving pleasure
With a minimum turning diameter of 6.5m, the maneuvering performance is greatly improved and the steering is more flexible; at the same time, the steering effort is reduced by 25%, which makes the maneuvering easier and allows you to pass through narrow areas with ease. With the extraordinary driving control, you can find passion and challenge with abandon, and have fun to the fullest.
Excellent off-road performance, transmitting the ultimate thrill
Steep slopes can be easily overcome; the newly adjusted shock absorbers provide better comfort; it is easy to run over thousands of miles, easily crush all kinds of complicated terrain, and release a sound pleasure between accelerating and tailgating.

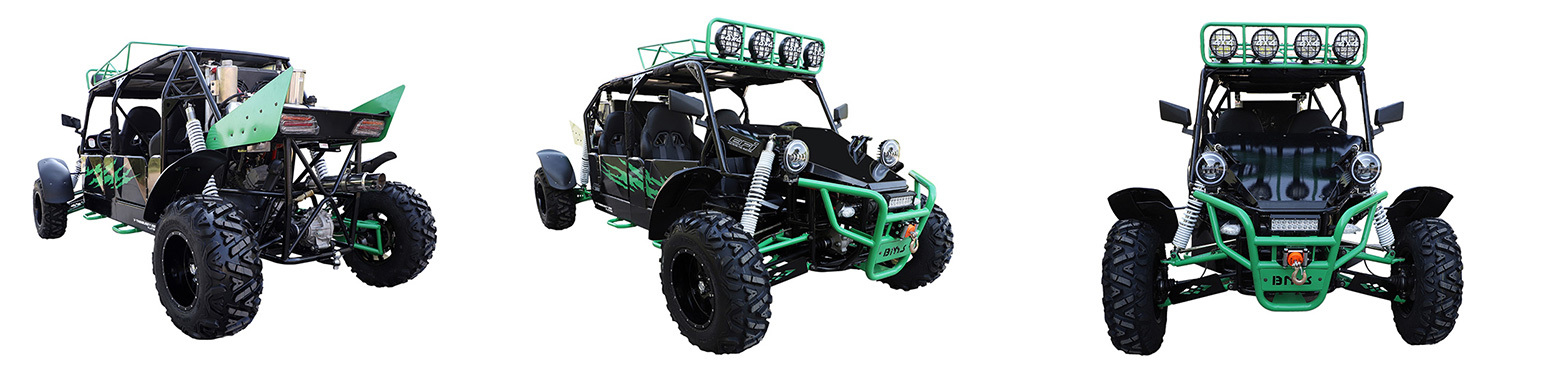

Gallery
-
Front wheel distance 1565mm Rear wheel distance 1430mm Shaft 3200mm Front and rear gearboxes Front gearbox with 4-speed 2-speed motor, rear gearbox with enlarged size and electronic differential lock Vehicle dimensions 3870x1760x1730mm Packing size 3900x1160x1250mm Net 780kg -
CVT Engine 976cc,4 stroke, type V double cylinder, SOHC,8 valve,water cooled Cylinder diameter x stroke 91x75mm Compression ratio 10.5:1 Maximum Power and Calibration Speed 63.7kw/6500RPM Maximum Torque and Corresponding Speed 101N.m/5500RPM Fuel supply mode Electrical Startup mode Electric start Gear 2 forward gear (high speed gear - low speed gear), parking gear, reverse gear Transmission system Auto CVT clutch Drive mode 4X4 driver Steering system Gear rack steering -
Brake system Front and rear wheel hydraulic disc brake Front wheels 27×9-14 Rear wheels 27×11-14 Tank capacity 26L Top speed 90km/h Minimum clearance from ground 325mm -
Standard configuration Human safety protection frame
Three point seat belts
Extend and increase the front and rear hydraulic shock absorbers
LCD digital display combination instrument
Direction assist machine
3500 pound tractor
All vehicle LED light source lights
Front bumper and bumper lights
Wrangler LED headlights
4 LED 4x4 ceiling lights
Plastic material hard roof
Sports seats
Four wheel mudguards and brackets
Left and right foot pedals
Aluminum wheels
Water tank protective net
Trailer ball joint fixing plateOptional accessories Windscreen
Trailer ball headUse of population Over 18 years and adults Color Blue/red/green/black
